Product Introduction
Description

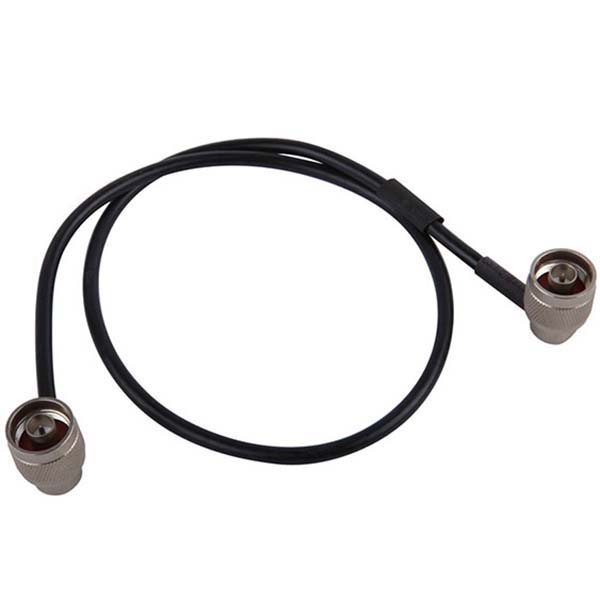

1/2" Superflexible Jumper Cable with N Male
Paxtal Each jumper is optimized to produce low passive third order inter-modulation. And tested and certified for low PIM with a dynamic test performance. Each jumper is individually certified to guarantee performance.
Application:Cable assembly
Plating:Nickel/gold
Material:Copper
Insulator resistance: ≥5GΩ
Impedance:50 ohm
Frequency range:DC-6GHz
Temp.range:-40°C~+85°C
|
Part # |
Description |
|
JC-DMS-DMS-1/2F |
DIN Male to DIN Male , Flex Cable |
|
JC-DMS-DFS-1/2F |
DIN Male to DIN Female, Flex Cable |
|
JC-DFS-DFS-1/2F |
DIN Female to DIN Female, Flex Cable |
|
JC-NMS-DMS-1/2F |
N Male to DIN Male, Flex Cable |
|
JC-NMS-DFS-1/2F |
N Male to DIN Female, Flex Cable |
|
JC-NFS-DMS-1/2F |
N Female to DIN Male, Flex Cable |
|
JC-NFS-DFS-1/2F |
N Female to DIN Female,Flex Cable |
|
JC-NMS-NMS-1/2F |
N Male to N Male,Flex Cable |
|
JC-NMS-NFS-1/2F |
N Male to N Female, Flex Cable |
|
JC-NFS-NFS-1/2F |
N Female to N Female,Flex Cable |
