Product Introduction
Description
Feeder clamp applied to communication base stations, repeaters, indoor coverage systems, wireless paging and microwave communication systems. It plays a fixed role in the distribution of transmission cables in towers, cable racks, indoor and outdoor, as well as in subways and tunnels, and can be used in different high and low temperature ranges. Feeder cards are widely used in many communication projects because of their economic, practical, durable and reliable positioning.

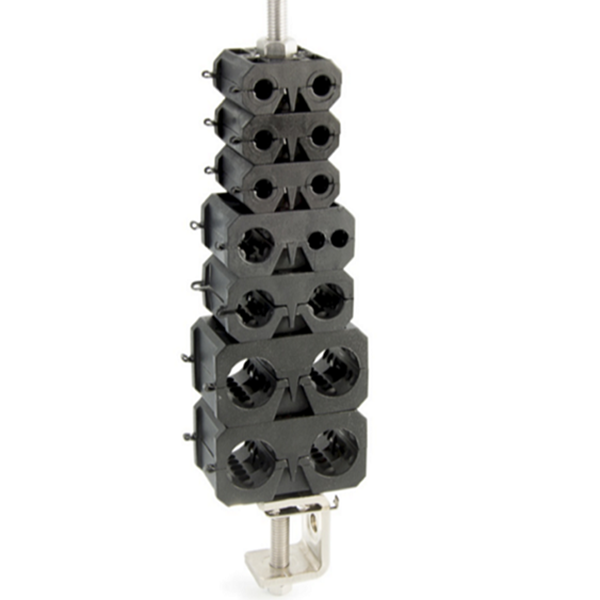

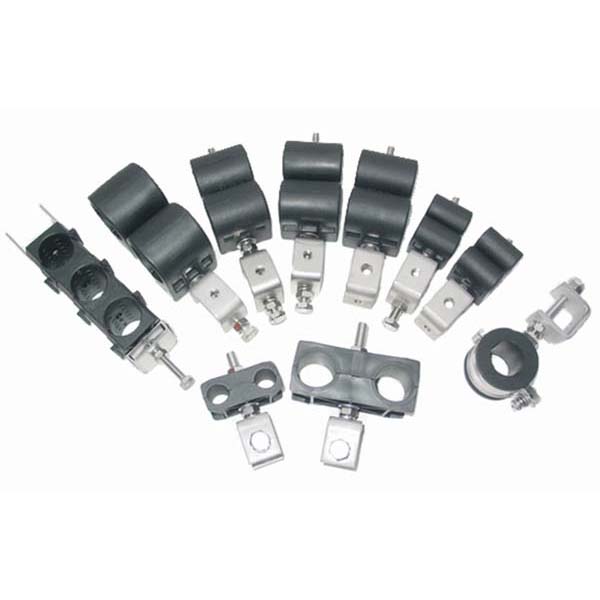

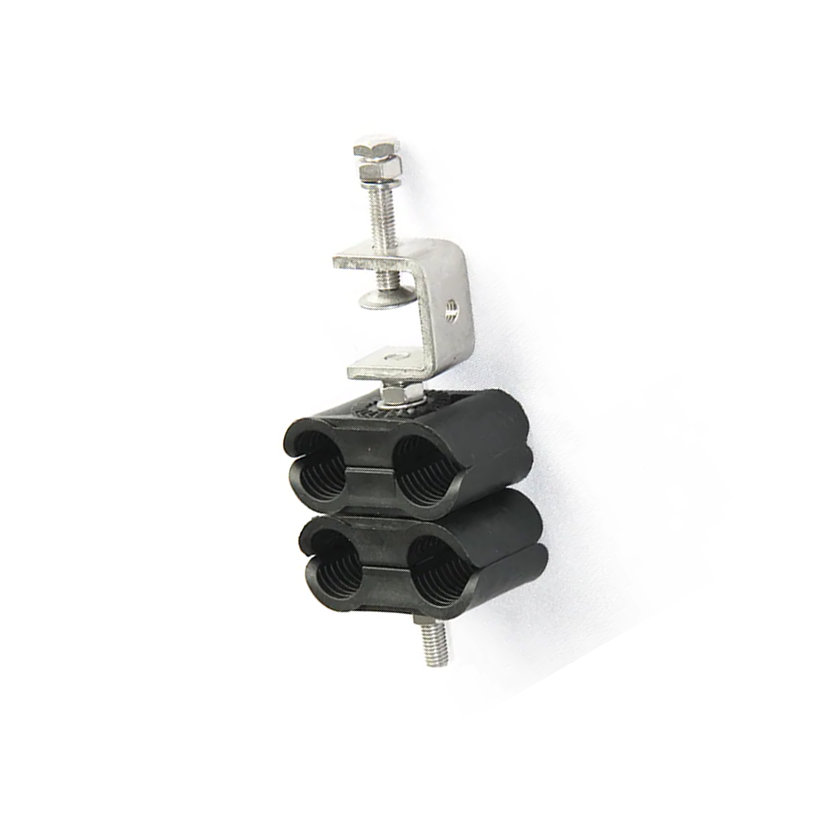

Paxtal Double Hole Type feeder clamp consists of plastic parts and U-type 304 stainless steel metal parts. and size of 1/2'' , 1/4'', 3/8'' 1/2S'',5/8'',7/8'',1-1/4'', 1-5/8'', 2-1/4'' available.
Specification
|
Item |
Qty (Pc) |
Material |
|
Bolt |
1 |
SS304 |
|
Nut |
2 |
SS304 |
|
Screw |
1 |
SS304 |
|
Washer |
2 |
SS304 |
|
Spring Washer |
2 |
SS304 |
|
Clamping Piece |
4 |
PP |
|
Angle Adaptor |
1 |
SS304 |
Brand Name: Paxtal
Type: Fiber & Power Feeder Clamp
Size:1/4"-2 1/4"
Material of metal part:SS304
Material of plastic part: PP/PA/EPDM
Salt spray test:48h
Operating Temperature: -40°C to 75°C
OEM: accepted
